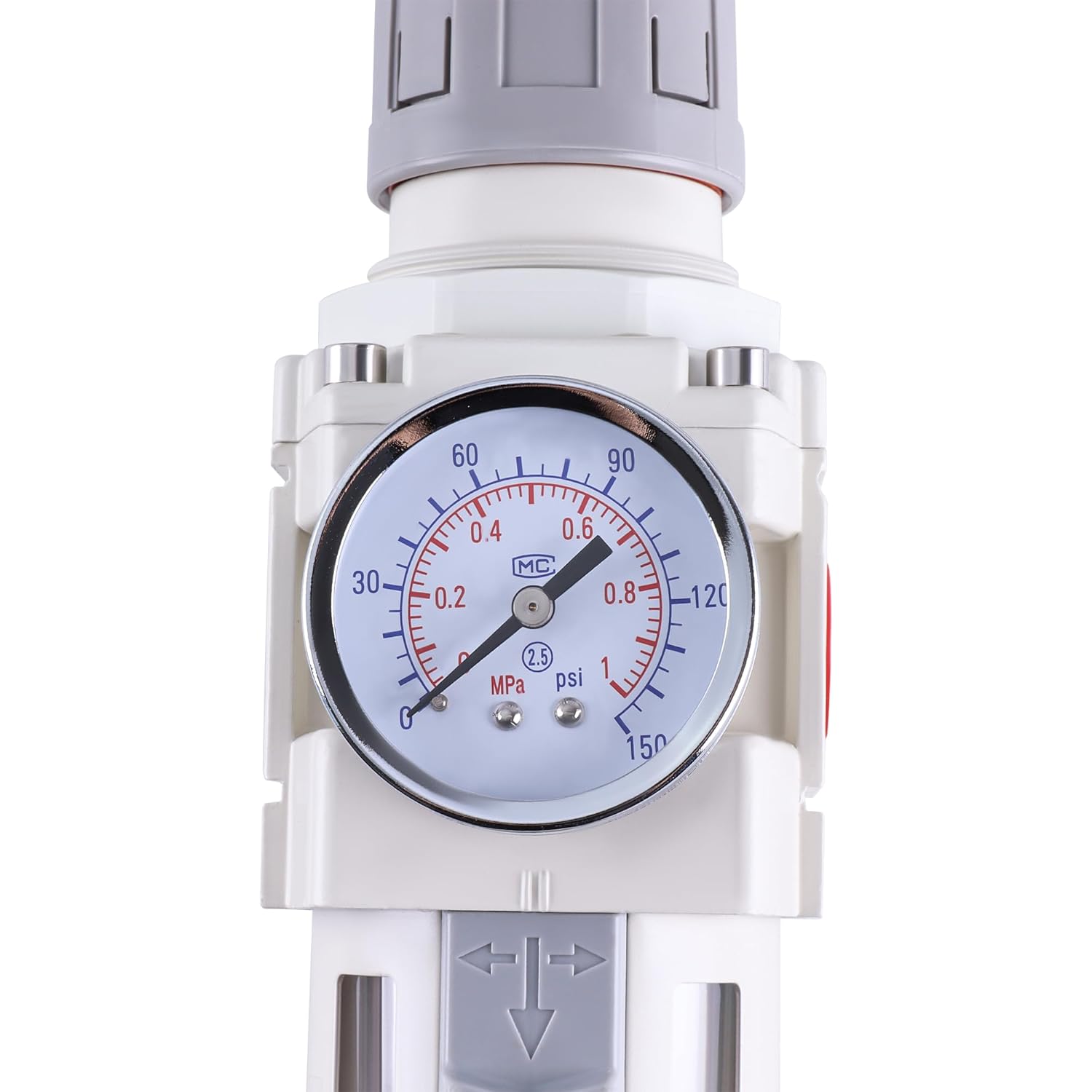

1/2 Inch NPT Air Filter Regulator Combo Piggyback, Air Compressor Water Separator, Air Line Dryer, Semi-Auto Drain, Air Pressure Regulator AW4000-04, 0-150 PSI Gauge

1/2" NPT Compressed Air Filter Regulator Combo PiggybackThe filter is designed to remove most liquid and solid particles from the air supply. The Self-Relieving Pressure Regulator is used to adjust the outlet pressure.AccessoriesAir Coupler＆ Plug KitThread Seal Tape and Fittings as additional accessories to bring more convenience to your installation.Installation and Operating1. PreparationThe assembly of all calibration shall meet the maximum flow requirement.Please clean the port and fitting before installation, it will effectively avoid bring dust to the air path.Pay attention to direction of air flow and arrow pointing on product body if correct, minding port and thread size if match.2. Pressure AdjustmentPull up the knob of pressure gauge, rotate:If you do clockwise rotation, pressure will rise steadily.Pressure will down when you rotate counterclockwise.Stop turning after reaching the required index and lock down the knob,forget this step you may face leakage problem.3. Dial ReadingMake sure that the pressure gauge is tightly installed on the main body, and pay attention to whether the reading rises and falls smoothly while adjusting pressure.Package Includes:1 x Polycarbonate Bowl1 x 0-150 PSI Gauge & Bracket1 x pair of Air Coupler＆ Plug Kit4 x 1/2 inch NPT Fittings1 x 1/2 inch Mini Ball Valve 1 x Thread Seal Tape

• 1/2 inch NPT semi-auto drain air pressure filter/regulator unit
• Max supply pressure:150 psi; operating pressure: 0-150 psi
• Brass filter element, excellent filtering performance, much longer life and reuse feasibility
• Temperature Range, 41-140℉ (5-60℃); Flow Rate: 141 SCFM (4000 L /Minute) 90 PSI
• Includes of Polycarbonate Bowl, 0-150 PSI Gauge & Bracket, a pair of Air Coupler＆ Plug Kit, 4 x 1/2 inch NPT Fittings, 1x 1/2 inch Mini Ball Valve, 1 x Thread Seal Tape
