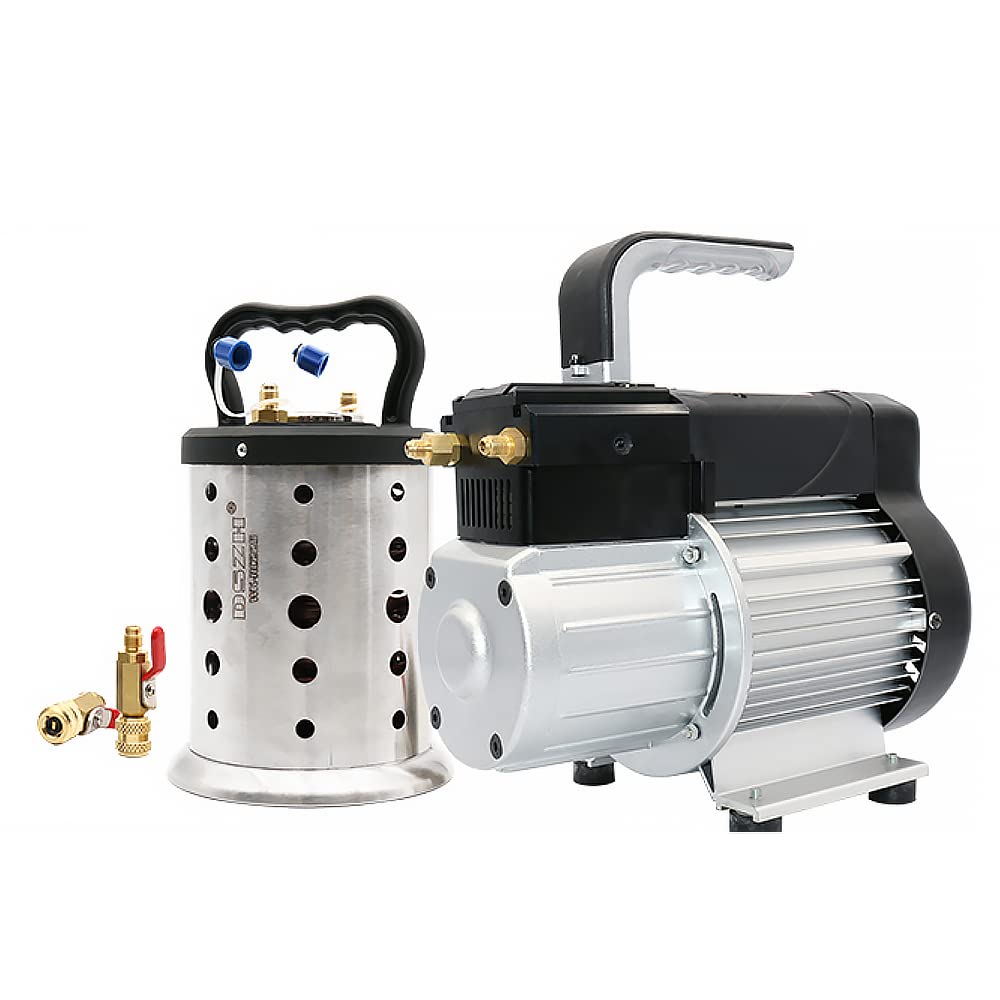

HNZXIB 3/4HP Portable Vacuum Refrigerant Recovery Machine

This recovery machine series is a special refrigerant recovery and filling equipment for refrigeration systems. Our recovery units are designed for residential, commercial, automotive, and industrial appliance applications. With an oil-less and air-cooled compressor, they recover all commonly used refrigerants of CFC, HFC, and HCFC including R22, R134a, R407C, and R410A. Parameter: Model: WK-225-22 Applicable refrigerants: Class III: R12 R401C R406A R500 Class IV: R22 R401A R401B R402B R407C R407D R408A R409A R411A RA11B R412A R502 R509 Class V: R402A R404A R407A R407B R410A R507 Power: 220V/60Hz Motor: 3/4HP Speed: 1450RPM/min Current: 4A Compressor: piston-type oil-free lubricated air-cooled High pressure protection: 38.0bar/3800Kpa/551psi Operating temperature: 0-50°C Dimensions: 320x160x330mm Net weight: 12Kg Recovery rate: Classification: Class III, Class IV, Class V Gaseous state: 0.228kg/min, 0.27kg/min, 0.319kg/min Liquid: 3.54kg/min, 4.02kg/min, 5.42kg/min Push-pull mode: 11. 64kg/min, 14.3kg/min, 14. 38kg/min Water-cooling material: stainless steel shell / purple copper tube Water cooling pressure: 40bar Water cooling interface: G1/4 inch Ball valve interface: G14 inch Water temperature requirements: ≤50°C Piping requirements: need to configure pressure explosion-proof Use Note: Refrigeration worker certificate to use

• Simple design and appearance, beautiful and practical; mainly for the function of refrigerant recovery, and can also be used for pressure filling of new refrigerants.
• Compact and easy to carry
• Adopt an oil-free compressor to ensure the purity of recovered refrigerant
• When all the recovery pipelines are connected reliably, that is, the equipment is recycled. Please pay attention when using the recycling machine: it needs to be placed and operated horizontally. The connection between the inlet and outlet of the condenser is not specified, and any inlet or outlet can be connected. However, the cooling water level needs to be about 10 mm higher than the pressure gauge, and the cooling effect of the refrigerant will be better.
• When the recovery of refrigerant is completed, when the bottom pressure gauge is displayed in OMpa [PSI], you can close each valve and the water condenser inlet and outlet ball valves; the refrigerant in the water condenser can be connected to the bottom pressure interface of the recovery machine and open the condenser The ball valve switch between the recycling machine can recycle the condensate into the storage tank.
