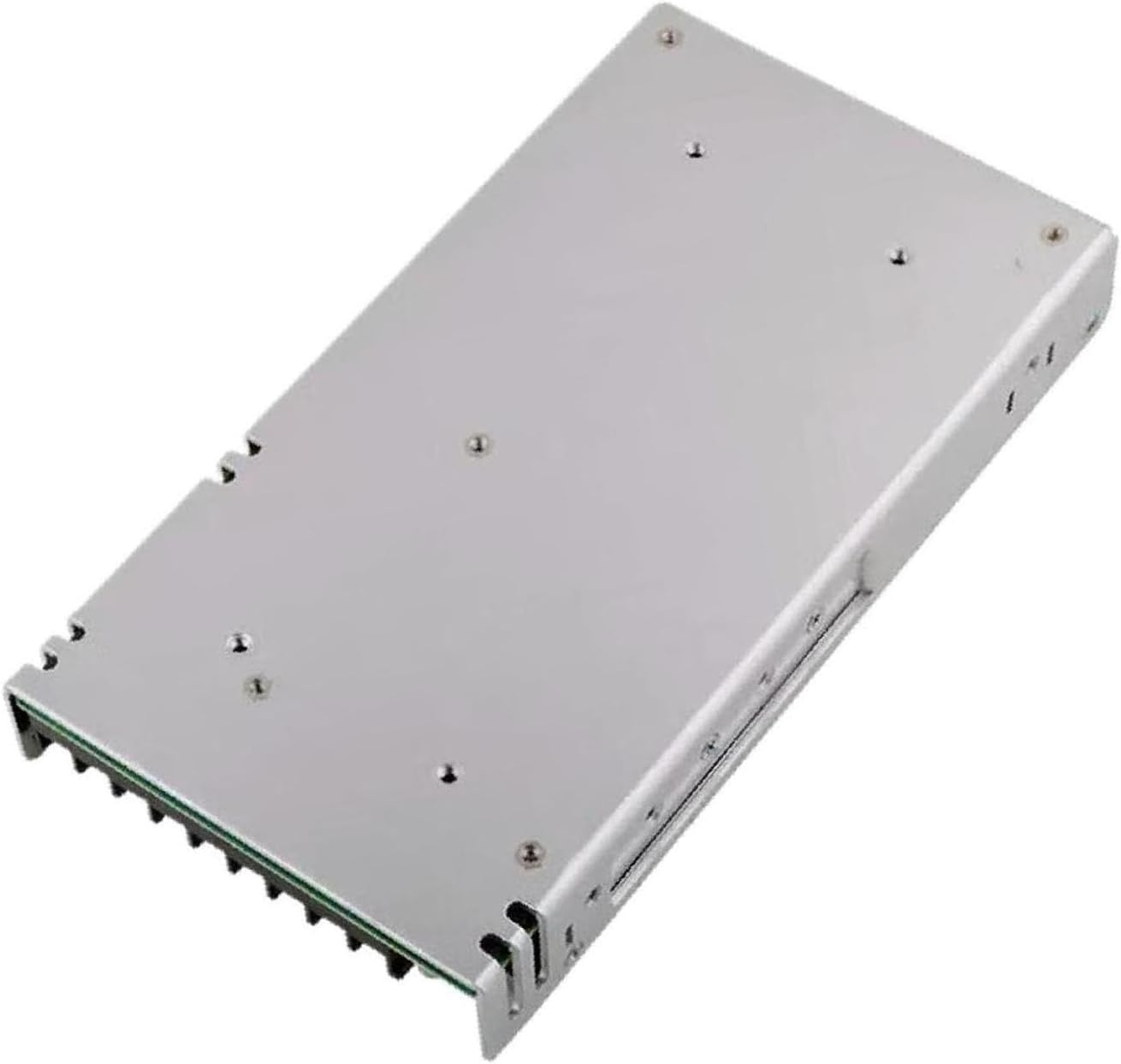

LRS-350-5: High Efficiency 5V 60A 300W Ultra Slim Switching Power Supply for Industrial Control Systems
5.0 (91 items)
Limited Time SaleUS$20.45 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212284070 | Release Date | 2026/04/06 | List Price | US$13.63 | Model Number | 212284070 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The LRS-350 series is a 350W single-output enclosed power supply featuring a 30mm low profile design. It accepts a universal AC input range of 85-264VAC and offers a variety of output voltages including 3.3V, 5V, 12V, 15V, 24V, 36V, and 48V. With an efficiency of up to 89%, the LRS-350 utilizes a metal mesh casing for enhanced heat dissipation, enabling fanless operation in temperatures ranging from -25°C to +70°C. Its ultra-low no-load power consumption (less than 0.3W) allows end systems to easily meet international energy requirements. The LRS-350 also boasts comprehensive protection features and 5G vibration resistance. It complies with international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, UL62368-1, and GB 4943.1, making it a highly cost-effective power solution for various industrial applications.
- Powerful 5V Industrial Power: Ideal for high-current applications like industrial automation, controls, and instruments, this UL-certified power supply delivers 5V/60A/300W with 300VAC surge protection.
- Ultra-Slim 1U Design with High Performance: At just 1.18" (30mm, 1U) thin, this power supply incorporates a long-life, low-noise fan for efficient cooling, enabling full-load operation even in space-constrained environments.
- Maximize Efficiency, Minimize Costs: Reduce your energy footprint and operating costs with up to 89% efficiency and ultra-low <0.75W no-load power consumption. A smart choice for budget-conscious businesses.
- Built Tough for Demanding Environments: Wide input voltage (115/230VAC selectable) and -13°F to +158°F (-25°C to +70°C) operating temperature range. Handles 5G vibration for maximum resilience.
- omprehensive Built-in Protection: Enjoy peace of mind with built-in short circuit, overload, overvoltage, and overheating protection.
| Brand | DineDeck |
|---|---|
| Wattage | 300 watts |
| Model Name | LRS-350-5 |
| Form Factor | ATX |
| Item Weight | 1.68 Pounds |
| Manufacturer | DineDeck powered by MEAN WELL |
| Model Number | LRS-350-5 |
| Cooling Method | Air |
| Current Rating | 60 Amps |
| Item Type Name | Industrial Switching Power Supply |
| Output Wattage | 300 Watts |
| Item Dimensions | 8.47 x 4.53 x 1.18 inches |
| Compatible Devices | Desktop Computer, Motherboard, Graphics Card, Processor, Internal Components |
| Maximum Input Voltage | 264 Volts (AC) |
| Minimum Input Voltage | 85 Volts (AC) |
| System Bus Connector Type | ATX |
| Connector Type Used on Cable | ATX |
