Universal DIY Intercooler 550 * 180 * 64mm and 2.5" 63mm Aluminium Piping with Turbo Blow Off Valve Hose Kit

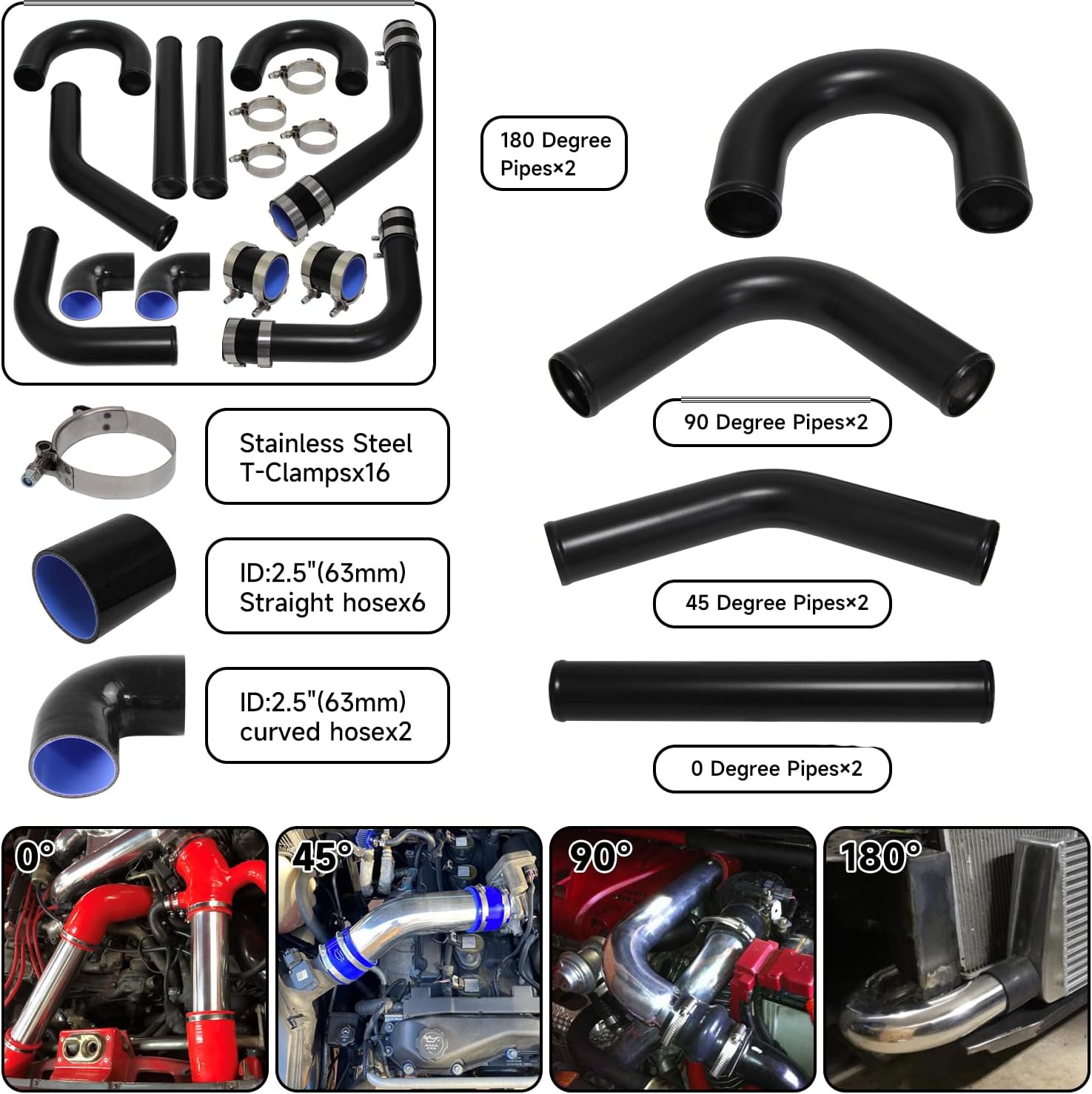

Application： Universal Aluminium Intercooler 550x180x64mm + 2.5'' 63mm Pipe Piping Hose Kit + BOV Turbo Blow Off Valve Kit Include： Straight Silicon Hose X6 90 degree Silicone hose X2 Intercooler X 1 T-Clamps X16 90 degree alloy pipes X2 45 degree alloy pipes X2 Straight alloy pipes X2 180 degrees U-bent alloy pipes X2 1 x Flange Pipe 1 x Blow Off Valve Vacuum Hose And Accessories Description： Pipe Thickness: 1.8 mm Pipe length:18" (450mm) for Many Turbo Intercooler Applications Bar/Plate Construction Inlet/Outlet: 2.5" Max. Recommended PSI: 32psi Fin Pitch: 15 Fins/Inch Four Threaded Universal Mounting Points Tank Wall Thickness: 5mm CFM: 1250 Turbo Blow Off Valve Kit: The Blow-Off valve (BOV) is a pressure relief device on the intake tract to prevent the turbos compressor from going into surge. When the throttle is closed rapidly, the airflow is quickly reduced, causing flow instability and pressure fluctuations. Surge can eventually lead to thrust bearing failure due to the high loads associated with it. Blow-Off valves use a combination of manifold pressure signal and spring force to detect when the throttle is closed. When the throttle is closed rapidly, the BOV vents boost in the intake tract to atmosphere to relieve the pressure, helping to eliminate surge. Horn with 8 Discharge Ports That Releases a Unique Discharge Sound Dual Spring System Promoted Response and Allows for High Boost Pressures Holds Up to 30 PSI Boost Pressure 2 Bolt Mounting Design Notice： Professional installation is highly recommended. Instruction is not Included Customs： For international transactions, you may also be responsible for possible duties, taxes, and customs clearance fees as requested by country laws.

• [Application] Universal

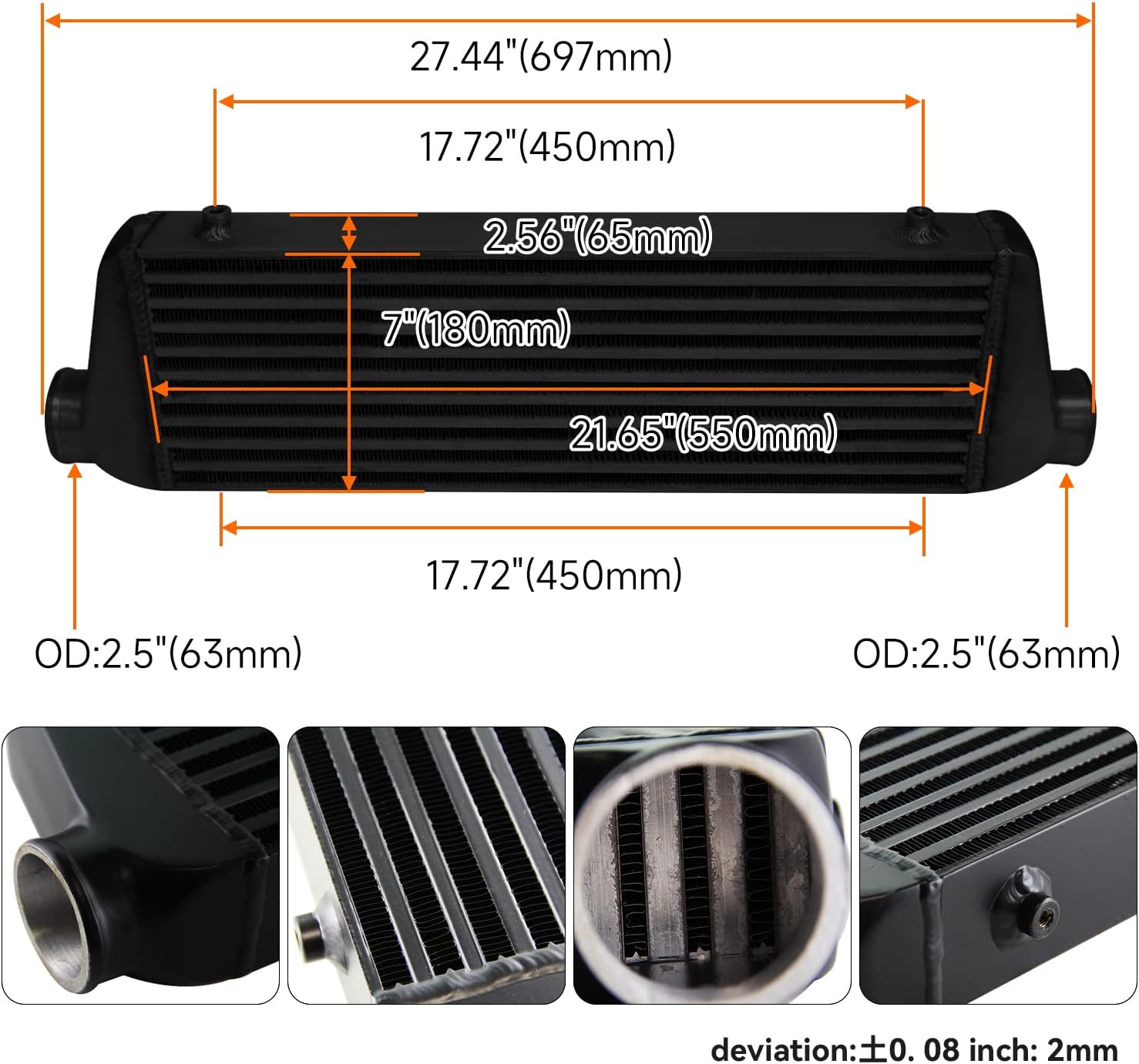

• [Intercooler] Inlet/Outlet: 2.5";Max.Recommended PSI: 32psi;Fin Pitch: 15 Fins/Inch;Four Threaded Universal Mounting Points Tank Wall Thickness: 5mm;CFM: 1250

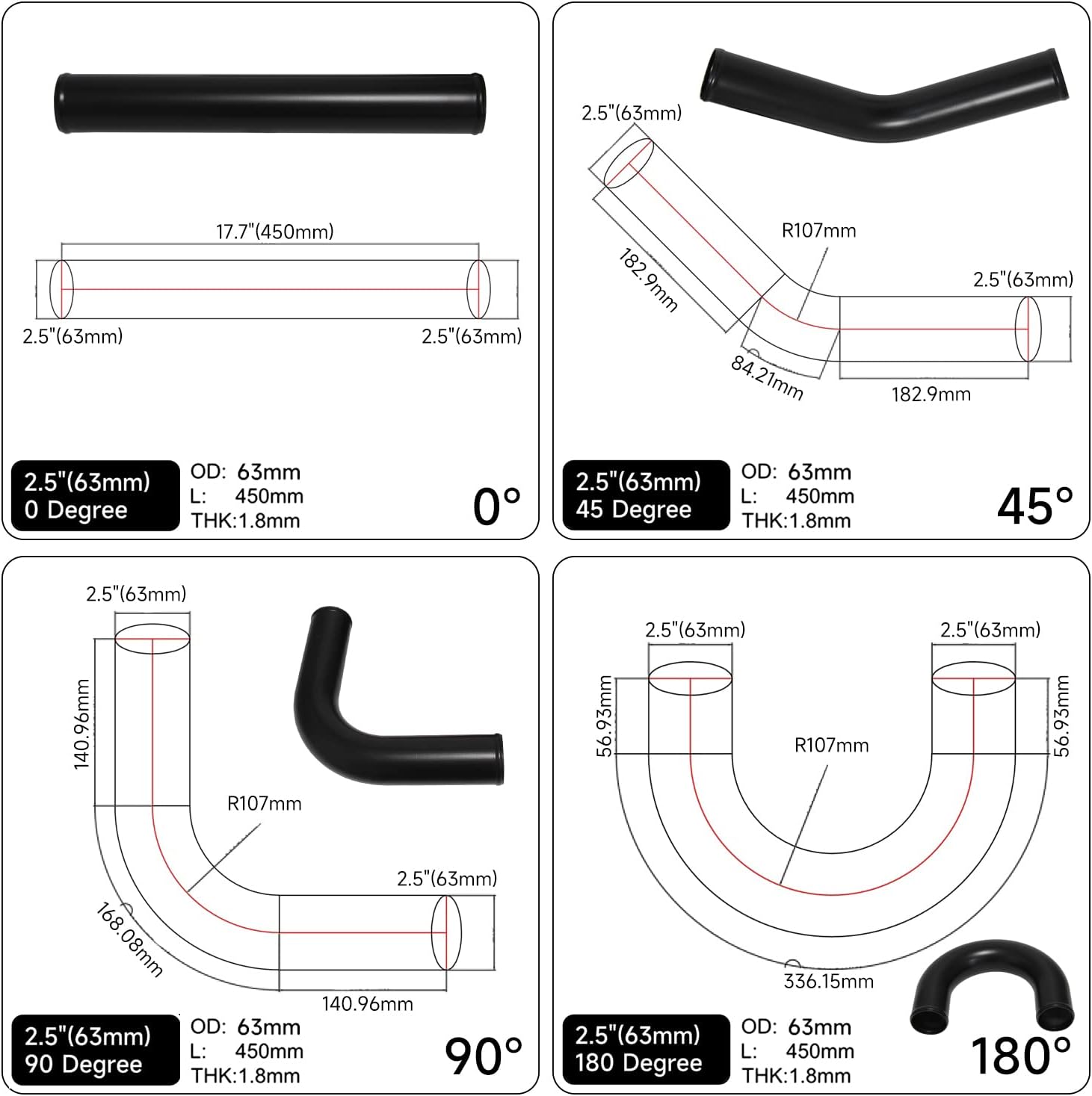

• [Pipe] Pipe Thickness: 1.8 mm;Pipe length:18" (450mm)
• [Blow Off Valve] Dual Spring System Promoted Response and Allows for High Boost Pressures;Holds Up to 30 PSI Boost Pressure;2 Bolt Mounting Design
• [Note] Instruction is not included. Professional installation is highly recommended
