Universal Hydraulic Valve Mounting Sub Plate Aluminum D03 NG6 Cetop 3 Pattern SAE -8 Ports (1/2" Nominal Dimension Port), SA6 Series

flash sale iconLimited Time Sale
Until the end
16
43
47

US$40.20 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$26.80
quantity

Product details

Management number 226999819 Release Date 2026/05/09 List Price US$26.80 Model Number 226999819
Category
  • Clear anodized aluminum for superior surface finish, better paint adhesion and stain resistance.
  • Uses M5-.08 thread for valve mount. The use of 10-24 threads found with many US valves can allow unsafe orientation of valve due to the smaller diameter. Therefore a locating pin is often needed with the 10-24 thread. We prefer the correct M5 thread.
  • Standard SAE -8 3/4-16 O-ring boss ports for a leak free system.
  • 3000 PSI maximum Pressure

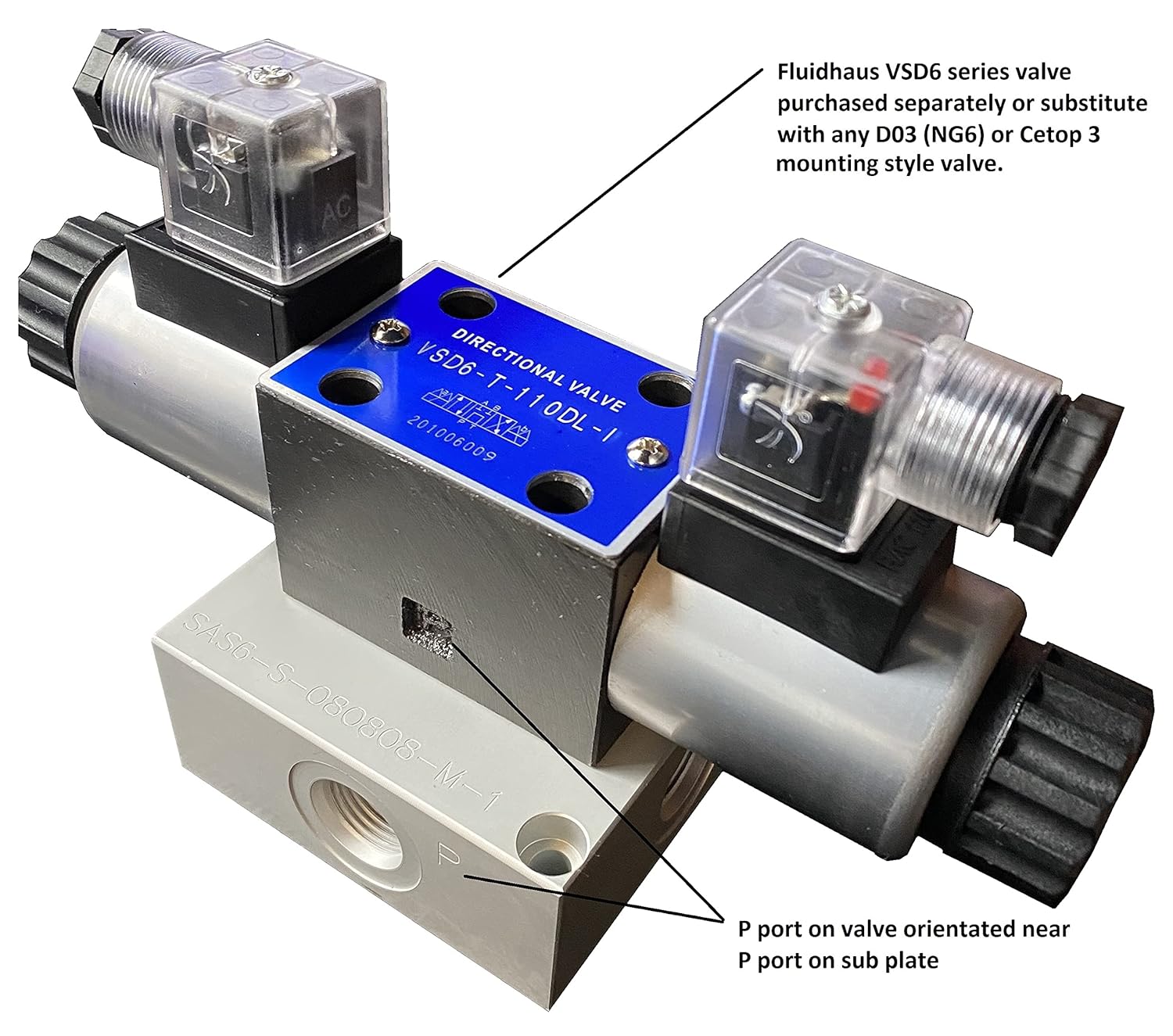

  • Note that one of the threaded valve mounting holes is offset less than 1mm to prevent mounting the valve in the wrong directions. If all bolts do not fit rotate the valve 180 degress and try again.
ASIN B0915DNCJ4
Size Compact (3.5 x 3.5 x 1.4 inches)
Brand Name Fluidhaus
Unit Count 1.0 Count
Valve Type Hydraulic Valve
Item Weight 1 Pounds
Thread Size M5
Thread Type M5
Manufacturer Fluidhaus
Model Number SA6-S-O8O8O8-M-1
Material Type Aluminum
Exterior Finish anodized aluminum
Item Dimensions 3.5 x 3.5 x 1.4 inches
Number of Ports 4
Maximum Pressure 3000 Pound per Square Inch
Specification Met sae
Inlet Connection Size 0.5 Inches
Inlet Connection Type D03 (NG6) CETOP 3 sub plate mount, SAE -8 standard threaded ports (1/2" nominal size)
Outlet Connection Size 0.5 Inches
Outlet Connection Type D03 (NG6) CETOP 3 sub plate mount, SAE -8 standard threaded ports (1/2" nominal size)
Manufacturer Part Number SA6-S-O8O8O8-M-1
Manufacturer Warranty Description 1 Year on material and workmanship
