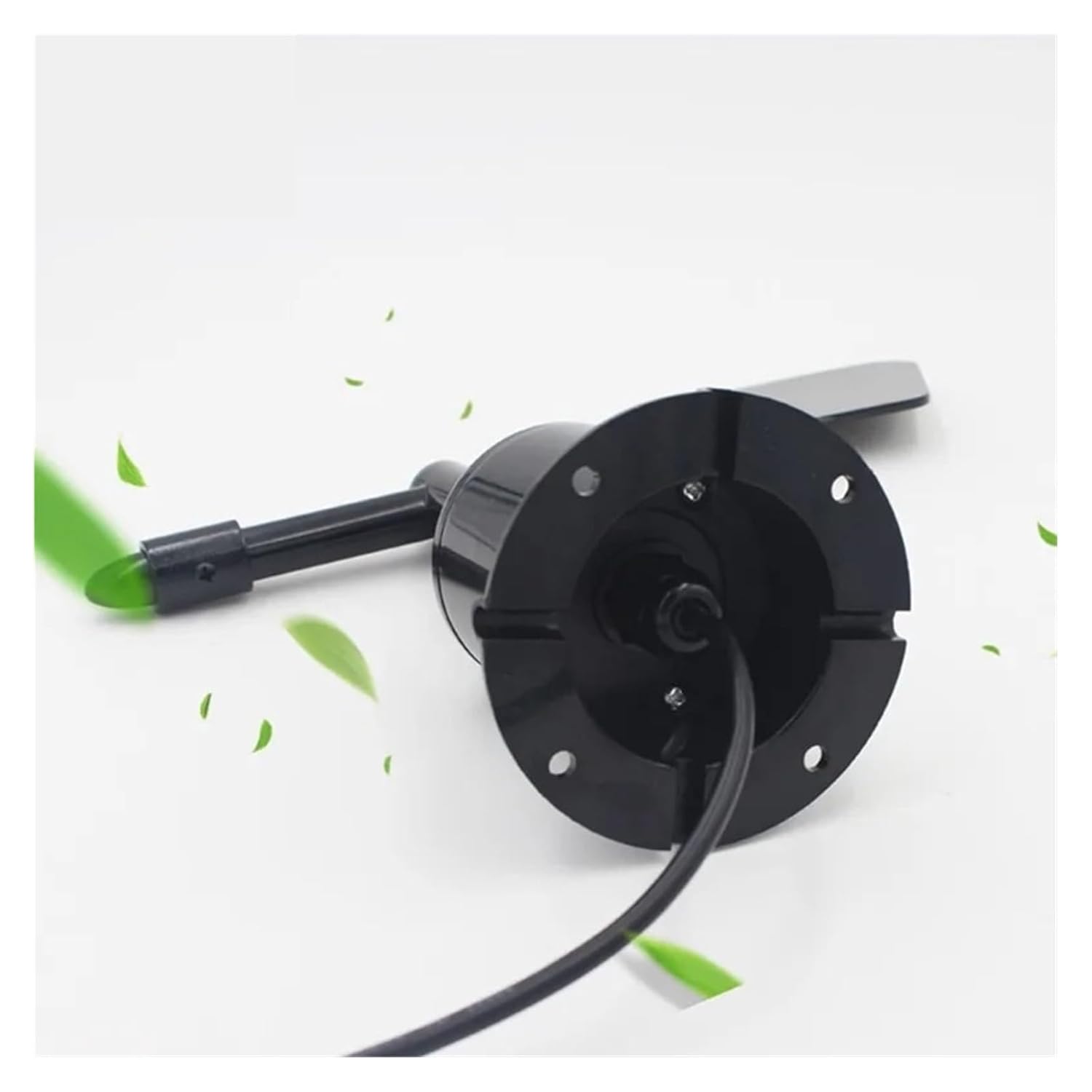

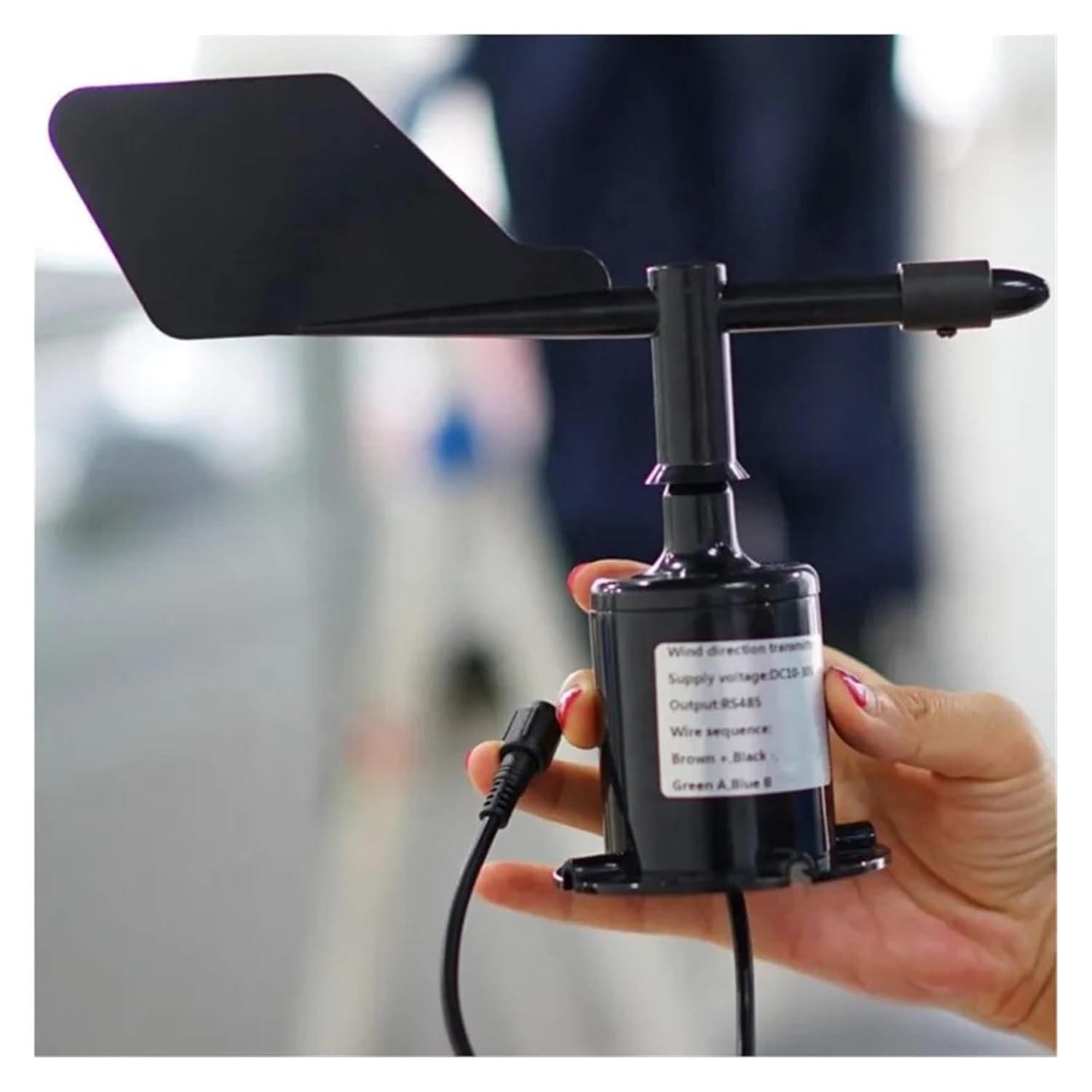

Wind Sensors DC10-30V Wind Speed Sensor 0-360degree Polycarbonate Wind Direction Sensor Anemometer Speed Measuring Tool (Color : 0-5V)

Moudle Wind direction sensor power supply 10 30V DC Measuring range 0-360degree indicate the direction Working Temp -20+60, 0%RH80%RH Parameters 485 (modbus) protocol Baud Rate: 2400, 4800 (default), 9600 Data bit length: 8 Parity: none Stop bit length: 1 The default ModBus Address: 1 Support Function code: 03 response speed 0.5s Output signal RS485/Analog RS485 OUTPUT Line color RS485 Description brown Positive power supply black Negative power supply yellow 485 -A blue 485 -B 4-20ma, 0-5V, 0-10V OUTPUT Line color Description power supply brown Power is positive black Negative power supply Output Blue Wind speed signal is positive Green Wind speed signal negative NOTE: Two types wire methods1.Four-wire connection diagram2.Three-wire connection diagram

• Transmission range Up to 330ft (100m); Outdoor Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Current wind speed, average wind speed and peak wind speed readings are tracked and updated every 18 seconds
• Assembly is easy, please follow the instructions provided.
• The reception range of the device has been improved, which greatly enhanced the accuracy and stability of data transmission.
• Experience the convenience of your personal home weather station.
