XBERSTAR Ebike Headlight and Tail Light Sets 24V-48V E-Bike Front Back Light Taillight with Horn for Electric Bicyle Headlight Kit

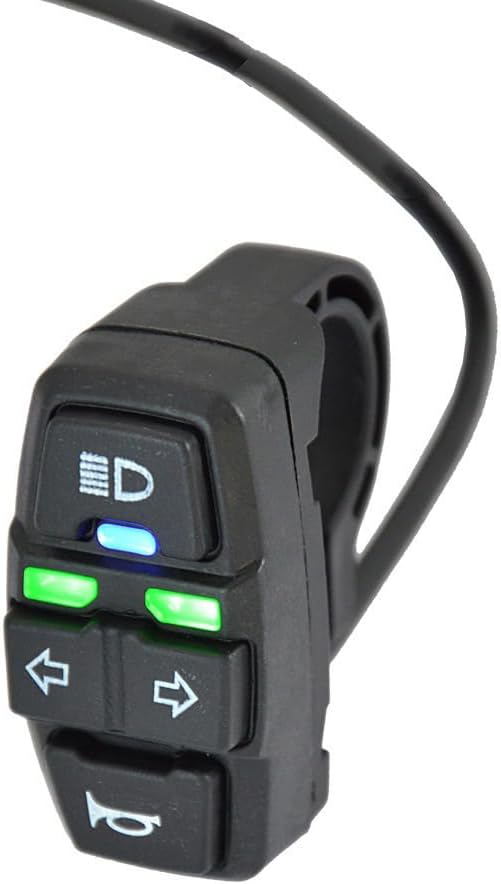

Warning 1: This product will not work in a Bafang or TSDZ mid motor. 2: It needs to be in a 36V or 48V battery to work properly. 3: This product needs to be connected to the same battery as the controller, otherwise the brake function cannot be activated. 4: Connecting the brake requires the controller to be a low brake. E-bike LED Headlights with Horn Function Specification: Product name：Two-in-one LED lights for headlights and horns Out line: three-core wire Material: ABS + LED Weight: 104g Wire length: 1500mm Size: 6.2*7.3cm Function: Headlight, horn Horn DB: 80-100dB Voltage: 12v-80v general Number of lamp beads: 4 LED Power: 12W Waterproof: IPX5 E-bike Multifunctional tail light Specification: Product Name：Multifunctional bicycle tail light Outlet wire: six core Applicable to voltage: 24V-48V Weight: 139g Wire length: 1500mm Material: ABS+LED Size: 14.6*4.9*4.2cm (without tail light bracket) Luminous flux: 15LM Switch button Specification: 1. Handlebar size: 22mm 2. Product size: L54 * W27 * h54 mm 3. Waterproof: IP65 4. Function: controls the on/off of the headlight horn and lights of the electric bike, and the left and right direction functions of the tail lights. 5. Cable length: 1.5m 6. Wires: white is negative pole, red is positive pole, headlight and purple is tail light, black is The Horn, green is right turn and ochre is left turn. 7. The maximum operating voltage is 48V, and the maximum operating current is 1A. Package includes: 1*1set E-bike Car Light Kit

• E-bike light set headlight + tail light + horn set is suitable for most e-bikes.
• E-bike lights need to use 36V or 48V battery to work properly, not applicable to Bafang or TSDZ center motor.

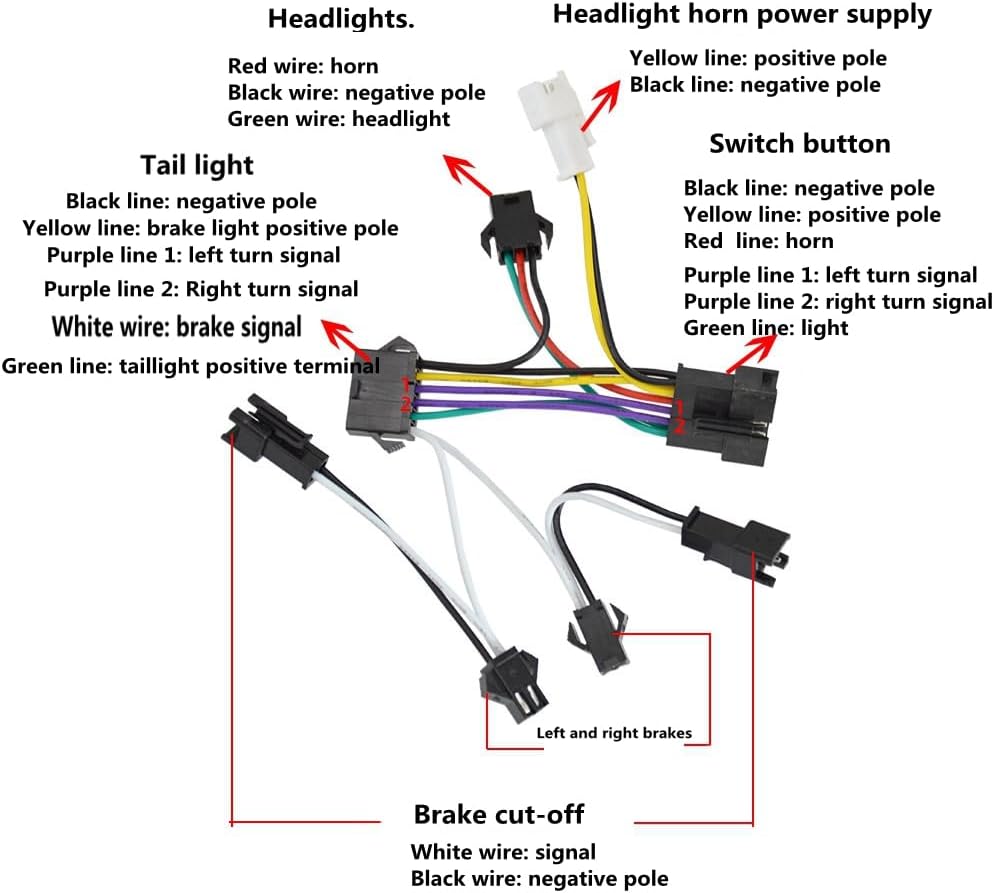

• When the brake signal cable is normally connected with the controller brake low voltage signal, the brake light is on when braking, and off when the brake is canceled
• E-bike turn signal light: when toggle the turn switch of the specified direction, the turn signal light of the corresponding direction will start to work and blink, the blinking frequency is about 800ms each time.
• E-bike headlight has high impact strength, wear-resistant, heat-resistant and other characteristics.
